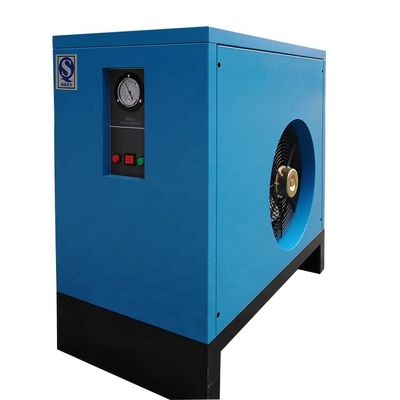

China factory supply refrigeration air compressor dryer for screw air compressor

1.0 Pieces
MOQ
China factory supply refrigeration air compressor dryer for screw air compressor
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Warranty: 1 Year
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Home Use, Printing Shops, Construction Works , Energy & Mining
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: Ordinary Product
Type: Air Dryer
Product Name: Refrigerated Compressed Air Dryer
Configuration: Stationary
Refrigerant: R22(Environmentally Friendly Refrigerant)
Pressure: 6-10bar
Pipe Diameter: 1 1/2"
Ambient Temperature: 35℃
Air Inlet Temperature: ≤60℃
Cooling Mode: Air Cooling
Air Flow: 6.5m3/min
After Warranty Service: Online Support, Spare Parts
Local Service Location: None
Basic Infomation
Payment & Shipping Terms
Packaging Details: export packing
Supply Ability: 300 Piece/Pieces per Month
Product Description
Product Description

1. Reliable and economical performance
Threaded pipelines of the heat exchanger increase the using rate of cooling air
Evaporator is made from laminose copper pipeline with aluminum flake, high efficiency and low energy consumption
Condenser made from fin copper, good heat exchanging rate without freeze and jam

2. Environmental friendly
Aluminum-alloy-made heat exchangers never get rusted, strong anti-corrosion properly,pollution reoccurrence free. Environmental cooling medium adopted across the series, keeping up with the international trends of environment protection

3. Top configuration
Whole series of refrigerated compressors are of first class brands,such as KERRY, COPELAND and MANEUROP
Whole series of refrigeration control elements are of first class brands,such as DANFOSS and ALCO
Whole series of air coolers adopt nanometer anti-corrosion coating on the surfaces

4. Total Control
Easy to use controller automatically manages dryer operation while monitoring critical parameters for optimum air treatment and efficiency

5. Flexible Design
Air-cooled and water-cooled options and compact size to fit any application Easy for installation and free maintenance

Air cooling models

1.Inlet temperature: ≤80℃
2.Cooling method: Air-cooling
3.Ambient temperature:≤38℃
4.Dew point:2-10℃
5.Inlet pressure:0.6-1.0Mpa
6.Pressure drop:≤2% of working pressure
7.Refrigerant: R22/R134a/R32/R407c

 Water cooling models

1.Inlet temperature:≤80℃
2.Cooling method: Water-cooling
3.Dew point:2-10℃
4.Inlet pressure:0.6-1.0Mpa
5.Pressure drop:25% of working pressure
6.Cooling water inlet temperature:≤32℃
7.Cooling water inlet pressure:0.2-0.4Mpa
8.Refrigerant: R22/R134a/R32/R407c

Technical Parameters



Model Air flow Compressor
(HP)
Power supply
(v/50hz)
Pipe diameter
inch
Dimension
(mm)
Weight
(kg)
m3/min cfm
P-7.5A 1.0  35 0.3 220 3/4" 610*400*640 38
P-10A 1.5  53 0.35 220 1" 750*420*800 52
P-15A 2.0  71 0.5 220 1" 750*420*800 65
P-20A 2.5  88 0.5 220 1 1/4" 750*420*800 73
P-25A 3.0  106 0.75 220 1 1/4" 750*420*800 80
P-30A 3.8  124 0.75 220 1 1/2" 930*510*950 92
P-40A 5.0  176 1 220 1 1/2" 930*510*950 100
P-50A 6.5  230 1.5 220 2" 930*510*950 115
P-60A 8.0  282 1.5 220 2" 930*510*950 136
P-75A 10.5  371 2 220 2 1/2" 1080*600*1150 160
P-100A 13.5  477 2.75 220 2 1/2" 1080*600*1150 210
P-120A 15.0  530 4 220 3" 1280*700*1400 235
P-150A 20.0  706 4 220 3" 1280*700*1400 265
P-180A 25.0  883 5 220 3" 1380*750*1400 293
P-200A 28.5  1006 5 220 3" 1380*750*1400 325
P-250A 30.0  1059 7.5 220 F4" 1500*900*1450 386
P-300A 35.0  1236 7.5 220 F4" 1500*900*1450 430
