Home /Products/Air Freeze Dryer/Medicine Processing OEM Customized Wholesale Industrial Electric Refrigerated Freeze Dryer For Air Compressor

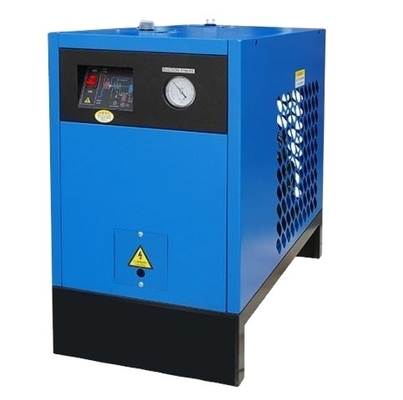

Medicine Processing OEM Customized Wholesale Industrial Electric Refrigerated Freeze Dryer For Air Compressor

1.0 Sets
MOQ
Medicine Processing OEM Customized Wholesale Industrial Electric Refrigerated Freeze Dryer For Air Compressor
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Freeze Drying Equipment, Air Dryer, Air Cooling
Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Condition: New
Voltage: 220V/380V
Power: 0.7-55kw
Dimension(L*W*H): Actual Size
Key Selling Points: Long Service Life
Warranty: 1 Year
Weight (KG): 68
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location: None
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Engine
Inlet Temperature: Standard 45℃(≤80℃)
Product Name: Refrigerated Air Dryer
Air Flow Capacity:: 2-45Nm3/min
Compressor Power: 10HP-400HP
Dew Point: 2~10°C
Working Pressure: Standard 7 Bar(≤10 Bar)
Advantage: Low Running Cost, Low Pressure Drop And Steady Dew Point
Cooling Water Inlet Temperature: ≤32°C
After-sales Service Provided: Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Certification: CE ISO9000
Basic Infomation
Certification: CE ISO9000
Payment & Shipping Terms
Packaging Details: INTERNATIONAL STANDARD WOODEN PACKAGE
Product Description

Work Principle

The freeze air dryer the principle of refrigeration to reduce the temperature of the compressed air, so that the
water vapor in the compressed air is supersaturated at low temperature and cold condensed into liquid water beads,
and then thecondensed water (including some oil and dust) is separated from the compressed air by means of air-water
separation and discharged out of the machine through the drainer, so as to obtain the dry compressed air.
Products Description
What is the refrigerated air dryer

The Refrigerated air dryer is a post-processing equipment specially designed to remove moisture from air compressors, using the principle of cooling and condensation to remove more than 95% of the moisture in compressed air.

It is used with precision filters to remove a large amount of moisture, oil and Impurities to achieve the high-quality clean air
required for gas usage.
Equipment Features
1
Low running cost, low pressure drop and steady dew point
2
Easy to install and maintain
3
Ideal for high environmental temperatures
4
Suitable for a range of air compressors
5
Including: heat exchanger, Evaporator,  Hot gas bypass valve, Expansion valve,  Water separator,  Refrigerant compressor, Automatic drain, Pressure control for compressor, Pre-cooler (for high temperature model)
Why we should buy the freeze dryer?.
Model
Flow
(Nm³/min)
Connections
(inch)
Power
KW

Size(mm)

TLY-10HP
2.0
G-1"


220-240V
1PH
50Hz
0.7
730*370*750
TLY-20HP
2.5
G-1"
0.75
800*390*800
TLY-30HP
3.5
G-1.5"
0.88
910*400*930
TLY-50HP
6.5
G-2"
1.25
1010*500*980
TLY-70HP
10.5
G-2.5"
1.73
1010*570*980
TLY-100HP
13.5
G-2.5"






380/3PH/50Hz
2.6
1270*650*1250
TLY-150HP
18.0
G-2.5"
3.38
1270*680*1350
TLY-180HP
21.0
G-2.5"
3.5
1270*680*1350
TLY-200HP
25.0
DN-80
4.5
1300*730*1550
TLY-250HP
28.0
DN-80
4.65
1300*730*1550
TLY-300HP
36.0
DN-100
6.7
1500*760*1620
TLY-350HP
40.0
DN-100
7.4
1500*760*1620
TLY-400HP
45.0
DN-100
9.6
1650*930*1750

HOW TO CHOOSE A RIGHT MODEL ?

A) Check the power or discharge flow rate of your compressor.
B) Check the pressure of your compressor ( generally at 0.8Mpa)

ABOUT SPARE PARTS
For the easy and convenient to installation, we offer free spare parts of the following list:
A) 1 set air filter, C T A class) 1 set of elbow, pipe and valves.
C) 1 set of 3 Phrase electric wire.
And if you need extra filters or filter elements, please send us RFQ about your parameters in demands
Other products
About us
TLY Machinery
TLY is one of the manufacturers specializing in the development and research of air separation technology, which including PSA nitrogen system, membrane separation nitrogen system and PSA oxygen system. Relying on the geographical advantage of the Pearl River Delta as well as the superior economic criteria of the Greater Bay Area, TLY continuously invest in the development and innovation of air separation technology. With abundant experience in air separation technology, TLY fulfill the different usage requirements of nitrogen and oxygen in various fields, and provide efficient, reliable, energy-saving and economical products to all customers. TLY also provide comprehensive, tailor-made and on-time service. TLY products are widely used in various fields such as petroleum, petrochemistry, chemical, automotive, plastic industry, electronics, aerospace, glass, coal, new materials, pharmaceutical, food and medicine.
TLY have an experienced professional team always ready to be at your service. The sales engineers carefully analyze your specified requirements and offer suitable solutions for you. The after-sale service system guarantees swift response to your problems within 24 hours and their resolutions in the shortest time. TLY is responsible for after-sales services to nitrogen/oxygen generators and other related equipment offered by us.
TLY is dedicated to supplying with our customers with more reliable, more economical and more convenient air separation solutions and professional service. TLY is expecting a WIN-WIN cooperation with your esteemed company!
NOTE:
TLY is a leading manufacturing in the field of gas separation and we have been in this industry since 2011. Products range:
- PSA NITROGEN GENERATOR
- PSA OXYGEN GENERATOR
- REFRIGERATED AIR DRYER
- DESICCANT AIR DRYER
- PRECISION AIR FILTER
- AIR BUFFER & STORAGE TANK
- BOOSTER
- PURIFICATION SYSTEM
Packing & Delivery
Contact Us
If you want to know more about absorption desiccant air dryer,pls answer below questions:

1.The capacity flow you need is ? Nm3/h

2.The outlet pressure you need is ?Mpa or Bar

3.Do you need the air compressor ,air dryer for full system?
