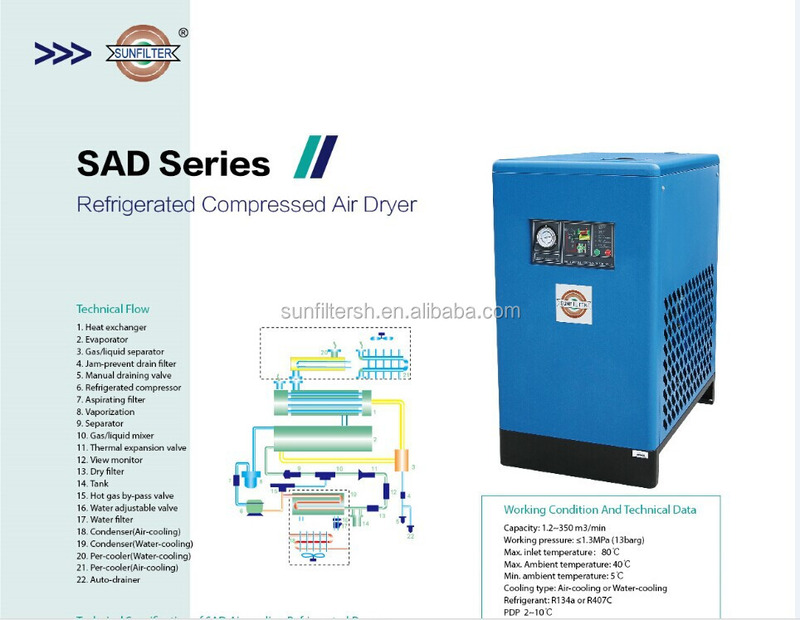

SAD series frozen dryer for belt driven air compressor
belt driven air compressor
Perfect refrigerated system configuration .Initial parts come from foreign famous brands to ensure efficient & system reliable running& life as well
Ripple pipeline of both internal and external of the heat exchanger to increase the using rate of cooling air , adverse current structure ,perfect structure..
Evaporator is made from laminose copper pipeline with aluminum flake,high efficiency of the system and air ,meanwhile reduce system load.
Good drainage ,it adopts 3 gardes for draining,can drain ,can drain lots of condensate water and oil contaminant so as to keep clean and dryness of the system and air ,meanwhile reduce system load .
Multi-control of the circuitry to supply to different users(single control ; integrate circuit , linkage control ,pc panel, frequency conversion,ect.)
Condenser made from fin copper, show flow, multi-cycling and high heat exchanging rate. It won’t freeze for a long time use .
Working conditions and Specifications
Capacity :1.2~350m3/min
Working pressure :≤1.3MPA (13barg)
Max. inlet temperature :80℃
Max. Ambient temperature:40℃
Min. ambient temoperature:5℃
Cooling type :Air-cooling or water-cooling
Refrigerant: R134a or R407C
PDP 2~10℃
Technical Specification of SAD Air-cooling Refrigerated Dryer
Model | Capacity | Nominal Power | Power Supply | Air Connections | Dimensions(mm) | Weight | ||
Nm3/min | Kw | V/Ph/Hz | L | W | H | kg | ||
SAD-1HTF | 1.2 | 0.85 | 220/1/50 | Rc1" | 630 | 450 | 640 | 50 |
SAD-2HTF | 2.4 | 1 | 220/1/50 | Rc1" | 700 | 450 | 830 | 80 |
SAD-3HTF | 3.8 | 1.25 | 220/1/50 | Rc1.5" | 850 | 500 | 920 | 105 |
SAD-6HTF | 6.5 | 1.5 | 220/1/50 | Rc1.5" | 880 | 550 | 1020 | 150 |
SAD-8HTF | 8.5 | 1.8 | 220/1/50 | Rc1.5" | 880 | 550 | 1020 | 160 |
SAD-10HTF | 10.7 | 2.5 | 380/3/60 | Rc2" | 1180 | 670 | 1080 | 240 |
SAD-13HTF | 13.5 | 2.5 | 380/3/60 | Rc2" | 1180 | 670 | 1080 | 260 |
SAD-15HTF | 18 | 3 | 380/3/60 | DN65 | 1360 | 710 | 1220 | 310 |
SAD-20HTF | 25 | 4 | 380/3/60 | DN80 | 1360 | 710 | 1220 | 400 |
SAD-25HTF | 28 | 4.5 | 380/3/60 | DN80 | 1650 | 750 | 1290 | 450 |
SAD-30HTF | 35 | 6.5 | 380/3/60 | DN100 | 1670 | 750 | 1575 | 780 |
SAD-40HTF | 45 | 8.8 | 380/3/60 | DN100 | 2000 | 950 | 1740 | 820 |
SAD-50HTF | 55 | 10.2 | 380/3/60 | DN125 | 2350 | 1050 | 1910 | 900 |
SAD-60HTF | 65 | 13 | 380/3/60 | DN125 | 2550 | 1100 | 1940 | 1100 |
Technical Specification of SAD Water-cooling Refrigerated Dryer
Model | Capacity | Nominal Power | Power Supply | Air Connections | Dimensions(mm) | Weight | ||
Nm3/min | Kw | V/Ph/Hz | L | W | H | kg | ||
SAD-10HTW | 10.7 | 2.5 | 380/3/60 | Rc2" | 1180 | 670 | 1080 | 240 |
SAD-20HTW | 25 | 4.0 | 380/3/60 | DN80 | 1360 | 710 | 1220 | 400 |
SAD-30HTW | 35 | 6.1 | 380/3/60 | DN100 | 1670 | 750 | 1575 | 780 |
Shanghai Sunfilter Industry.Co.,Ltd.is a manufacturing company which is specialized in compressed air drying and purification equipment who's research,manufactory,sales and service.
the leading product is Refrigerated Air Dryer ,Desiccant Air Dryer ,Compressed Air Filter,Modular Regenerative Adsorption Compressed Air Dryer,Water Chiller .we have the CE certification and could provide the ASME code dryer for customer.
Sunfilter has been seeking excellence all the time . the company ushers in the Denmark France Japanese ect. Nations system cold and advanced technique,equipments and the original machine pieces,meanwhile taking the advanced designing concept and exquisite Production Process,following the ISO9001 quantity management system completely.
we have been improving quality by good management,seeking development by innovation ,casting the brand in good faith,expanding the market in a win-win situtaion,our products not only throughout the country,but also export to Australia ,South America ,South America, Southeast Asia, Middle East, Europe and more than 30 Countries.
