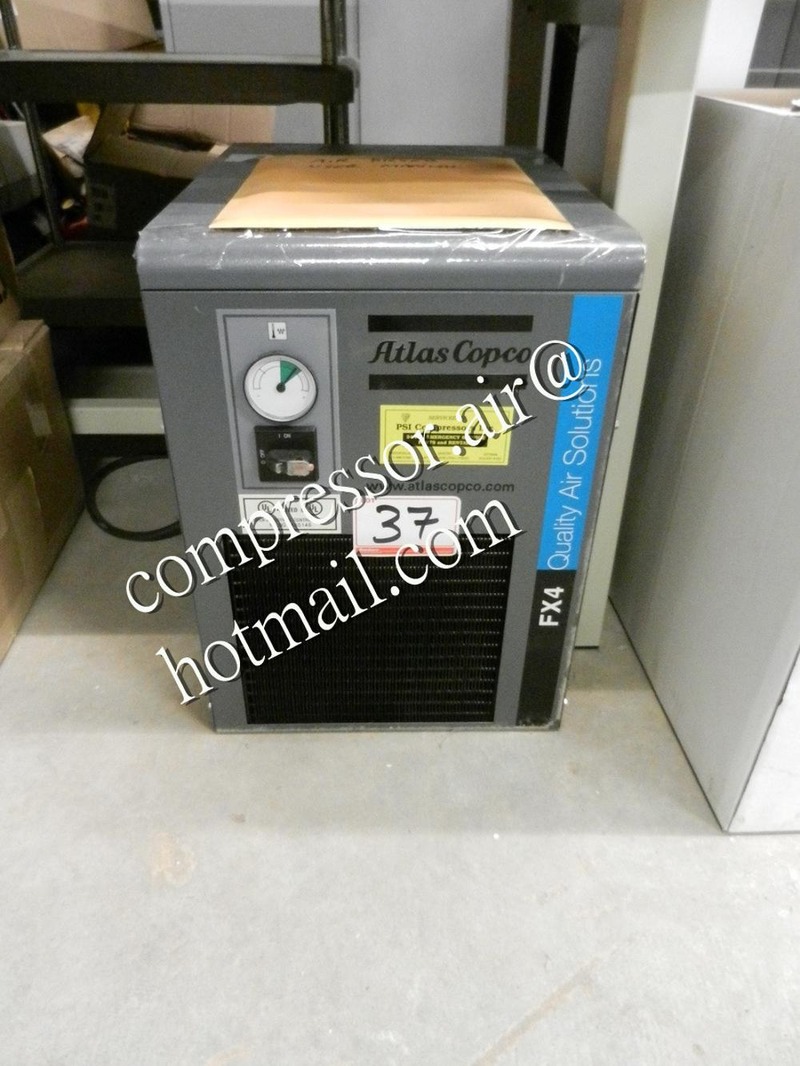

FX 1-16 Refrigerant air dryers
FX refrigerant dryers - the smart choice
The benefits add up :
Solid performance
Steady pressure dew point
No freezing of condensed moisture
No chance of moisture entering the compressed air system.
Simple reliability
Quality components, generously sized
Simple and proven design
Effective control system (hot gas bypass).
Easy Installation
Plug and play concept
Single electrical connection
All units pre-commissioned
Self regulating.
Minimal maintenance
Long service intervals
Few component replacements
Ergonomic design for fast access to key components.
Significant cost savings
Increased reliability and lifetime of tools and equipment
Reduced pipe work leaks, meaning reduced energy bill
Fewer repairs to tools, machines and pipe work
Less inconvenient breakdowns and stoppages
Minimal chance of product spoilage through moisture carryover.
Air purification
No installation is complete without filtration
Technical data
Technical specification : 50 Hz version
| Model | Outlet pressure dew point | Maximum working pressure | Electrical supply | Compressed air connections | |||
| + 5 °C / 41 °F | + 3 °C / 37 °F | ||||||
| Inlet capacity | Pressure drop | Inlet capacity | Pressure drop | ||||
| m³/min | bar | m³/min | bar | ||||
| FX 1 | 0.42 | 0.20 | 0.36 | 0.15 | 16 | 230/1/50 Hz | 3/4" M |
| FX 2 | 0.72 | 0.33 | 0.60 | 0.25 | 16 | 230/1/50 Hz | 3/4" M |
| FX 3 | 0.96 | 0.33 | 0.84 | 0.25 | 16 | 230/1/50 Hz | 3/4" M |
| FX 4 | 1.38 | 0.33 | 1.20 | 0.25 | 16 | 230/1/50 Hz | 3/4" M |
| FX 5 | 2.10 | 0.40 | 1.80 | 0.30 | 16 | 230/1/50 Hz | 3/4" M |
| FX 6 | 2.70 | 0.42 | 2.34 | 0.32 | 13 | 230/1/50 Hz | 1" F |
| FX 7 | 3.48 | 0.50 | 3.0 | 0.38 | 13 | 230/1/50 Hz | 1" F |
| FX 8 | 4.15 | 0.24 | 3.60 | 0.18 | 13 | 230/1/50 Hz | 1 1/2" F |
| FX 9 | 4.75 | 0.33 | 4.09 | 0.25 | 13 | 230/1/50 Hz | 1 1/2" F |
| FX 10 | 6.01 | 0.24 | 5.23 | 0.18 | 13 | 230/1/50 Hz | 1 1/2" F |
| FX 11 | 7.51 | 0.26 | 6.49 | 0.20 | 13 | 230/1/50 Hz | 1 1/2" F |
| FX 12 | 8.89 | 0.36 | 7.69 | 0.27 | 13 | 230/1/50 Hz | 1 1/2" F |
| FX 13 | 11.53 | 0.33 | 10.03 | 0.25 | 13 | 400/3/50 Hz | 2" F |
| FX 14 | 13.82 | 0.40 | 12.02 | 0.30 | 13 | 400/3/50 Hz | 2" F |
| FX 15 | 17.30 | 0.40 | 15.02 | 0.30 | 13 | 400/3/50 Hz | 2" F |
| FX 16 | 20.73 | 0.40 | 18.02 | 0.30 | 13 | 400/3/50 Hz | 2" F |
Reference conditions
• Ambient temperature : 25 °C • Inlet temperature : 35 °C • Working pressure : 7 bar(g)
Notes :
Refrigerant types: • R134a for FX 1-5 • R404a for FX 6-16
Limitations :
• Max. ambient temp.: 43 °C • Min. ambient temp.: 5 °C • Max. inlet temp.: 55 °C
Filter selection
<td valign="top" width="102" style="padding: 0px; line-height: normal; font-family: Arial, Helvetica, sans-serif; vertical-align: top; background-color: rgb(102, 102
| Model | Outlet pressure dew point | |||||||
| + 5 °C / 41 °F | + 3 °C / 37 °F | |||||||
Atlas Copco FX-Series Air Dryer: Compressed air contains oil, solid particles and water vapor. Together, they form an abrasive, often acidic, oily sludge. Without air treatment, this murky mix will enter the compressed air system, corroding pipe work, damaging pneumatic tools and potentially compromising final products. Haringa Compressor provides onsite audits and system analysis to help you select the right technology for your installation. With our professional installation, preventive maintenance services and comprehensive warranty offer, the FX-Series is ideal for most applications.
Our FX industrial refrigerant air dryers help you avoid the operational costs and downtime caused by corrosion and damage from compressed air condensation
The FX industrial refrigerant air dryers deliver a strong performance with a steady pressure dew point with digital display. No freezing of condensed moisture and no risk of moisture entering your compressed air system
With quality components, a robust design and effective control systems, the FX air dryers offer proven reliability
The plug-and-play concept with a single electrical connection and self-regulating controls facilitates installation
The ergonomic design of the FX air dryers ensures fast access to key components. Combined with long service intervals, this ensures your maintenance costs are minimal
FX refrigerant air dryers
Our FX refrigerant dryers reliably, cost efficient and simply remove moisture from your compressed air system. As a result, you avoid condensation and the operational costs and downtime caused by the resultant corrosion.
SPECIFICATION:
50HZ/60HZ
F5 F10 F15 F20 F30 F40 F50 F60 F70 F90 F110 F130
Compact, low maintenance dryers that are compatible with most compressor technologies and applications
Thanks to their 7 °C/45 °F pressure dewpoint, our F dryers can be used for applications that require ISO 8573-1 Class 5 air quality.
Long service intervals
Easy access to key components
Compact footprint of only 0.13 m2
Simple vertical design
Plug-and-play installation
Dewpoint indicator to verify air quality
Efficient cooling system ensures low energy cost
Fewer repairs to tools, machines and pipework
Our complete range of refrigerant air dryers
Our refrigerant air dryers offer a reliable, cost effective and simple solution to avoid condensation and thereby corrosion in your systems
Our ranges of refrigerant air dryers require a minimum of maintenance, and hence can deliver a maximum of uptime. Reducing your operational costs through less downtime
Our refrigerant air dryers follows the plug-and-play concept, meaning you can easily install your unit
Our range of refrigerant air dryers. Increased productivity, reduced operational costs and increase system protection. See how
The air that leaves a compressor reaches 100% humidity. Aftercoolers and drains are the first line of defense against water in your system. Our dryers eliminate the residual humidity to achieve absolutely dry air for applications that require advanced air quality
Technical data:
Factors:
COMPRESSED AIR
An important part of many compressed air systems is the compressed air dryer. Although not necessary for DIY at home type compressors, when you use many air tools or air-operated machinery, an air dryer is a must have!
A compressor that sucks in 20 liters of air per second, also supplies 24 liters of water a day! About 15 of those liters would be removed in that aftercooler. A further 7 liters would be removed in
a (refrigerant) dryer.
As the name implies, air dryers are used to dry the compressed air: they remove moisture from the air, resulting in dryer air. This way, your valuable tools and machinery are protected from water and rust. But also your piping used to transport the compressed air is protected.
Compressors suck in lots of air and compress it to about 7 times the volume (that is, 7 bar pressure). The air that is sucked in always contains a little (or a lot!) water.
While the air can be compressed, the water cannot!
Say your compressor suck in 7 cubic meters of air per hour, and it compressed it to 1 cubic meter of air at 7 bar. The 7 cubic meters of sucked-in air contains water (like all the air around us). After compression, there is only 1 cubic meter of air, but with still the same amount of water!
Hot air can contain more water than cold air. That’s a fact, just believe me . When the air exits the compressor, it is hot and wet. 1 cubic meter hot compressed air still contains the same amount of water that the 7 cubic meters cold air did before they were compressed.
As a standard routine, I drained the air receiver of water and used a small bucket for that. After a few seconds, the bucket was full. I emptied the bucket and tried again’?’ Again, the bucket was full! So I got a bigger bucket…
At the end, the whole 1000 liter air receiver + part of the piping system (the water went all the way back to the compressor!) was full of water!!! That’s a lot of water!
Normally, the compressed air goes through an aftercooler which will cool down the air to about 20 degrees higher than room temperature (about 40 degrees Celsius). During the cooling-down, a lot of water will condensate and will float with the air in the form of small drops.
At the end of the after cooler, there should be a condense water trap, which will remove all the water that has formed.
Now the air leaves the compressor at about 40 degrees, but saturated with water. It’s right at the dewpoint temperature (dewpoint = temperature at which condensate forms. That is when the air reaches 100% relative humidity and can’t hold any more water).
For every degree that your compressed air cools further, more water will condense! And considering that the air that leaves the aftercooler of the compressor is about 20 degrees warmer than room temperature… you have a problem! :)
If you didn’t have a compressed air dryer, most of those 7 liters would end up in your compressed air piping, your receiver and in your tools and machinery!
FEATURES:
· Perfect refrigerated system configuration. Initial parts come from foreign famous brands to ensure
efficient & system reliable running & life as well.
· Refrigerated & air system is accurate calculated by professional designing engineer, keep 20%
capacity
· Gas liquid separated thoroughly. Filtering separated with HANKISON element. Thorough separation,
avoid the second vapor of water, ensuring dry effect. It better than cyclone separated and it will reach
efficiency at 99.99%.
· Pipeline is made from inner zincification. You can choose working pressure during 0.3~4.5Mpa.
· Stainless steel pipeline, it's suitable for medicine, food stuff, acid-resistant, alkaline-resistant and erodent-resistant industry.
· Ripple pipeline of both internal and external of the heat exchanger to increase the using rate of cooling air, adverse current structure, perfect returning temperature and it won't freeze.
· Evaporator is made from laminose copper pipeline with aluminum flake, high efficiency of heat
exchanging of the perfect structure.
· Good drainage, it adopts 3 grades for draining, can drain lots of condensate water and oil contaminant so as to keep clean and dryness of the system and air, meanwhile reduce system load.
· Multicontrol of circuitry to supply to different users (single control; integrate circuit, linkage control, PC panel, frequency conversion, etc.)
· Outer cooling fan with large volume, low noise, and long life if switch frequently.
· Low condenser made from copper, slow flow, multi-cycling and high heat exchanging rate. It won't
freezing and dirty if stop for a long time.
· Armstrong foam burning resistant & adiabatic material. It's the least loss of cooling air.
· Protection level of compressor is IP54 (dustproof and spill proof).
